Direct Reading Remote Valve Water Meter(Vertical)
Measuring Grade: Class 2
Contour Size (mm): DN15:165×92×125(185)  DN20:195×92×125(185)
Working Water Temperature: Cold Water Meter: 0-40 °C
Valve form: ball valve
Product Detail

Parameter

Measuring Grade: Class 2

Contour Size (mm): DN15:165×92×125(185)

DN20:195×92×125(185)

Work Water Temperature: Cold Water Meter: 0-40 °C

Valve form:ball valve

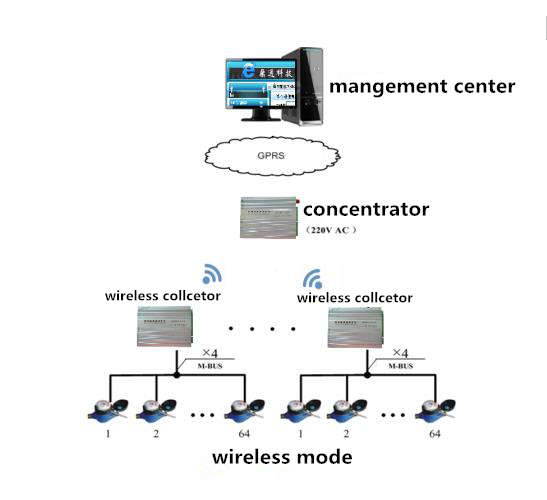

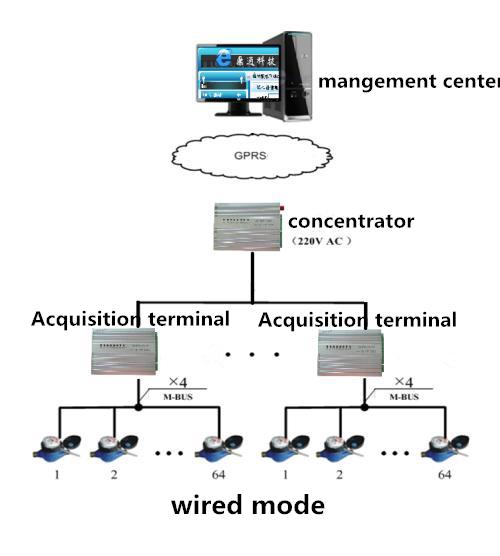

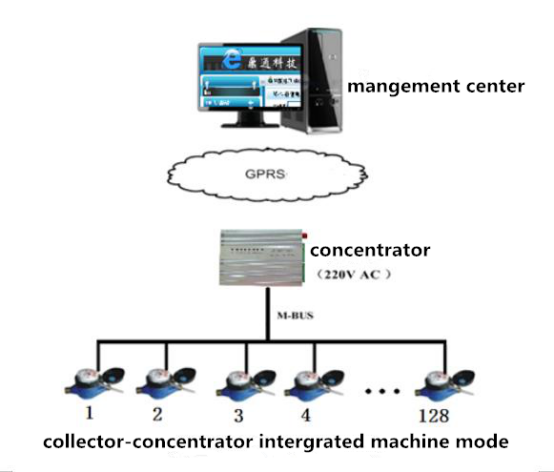

System Composition

Direct Reading Water Meter: Direct Reading Long-distance Meter Reading System consists of direct reading water meter, collector, concentrator and management center. There are two kinds of valve-controlled direct reading water meters and non-valve-controlled direct reading water meters. During meter reading, the direct reading module reads the mechanical counter value, transmits and stores the data in the re-charger through the collector, so that the system can get the real-time meter reading.

Collector: The collector receives the command of the concentrator to copy upwards, controls the power supply of the water meter downwards (only when the working command is connected), reads the pen data, and uploads the data of the water meter to the concentrator. When the water meter or its circuit is open or short-circuited, it will not affect the reading of other water meters.

Concentrator: The concentrator is the storage unit of data. It sets the time reading date according to the user's needs. The data after reading is stored in the concentrator. The management center can read the concentrator data at any time. It can also instruct the concentrator to issue operation instructions to the collector and water meter, upload the real-time data of water meter or execute the valve switch.

Management Center: Processing and storing the data collected by the whole system, and providing functions of query and printing. The main equipment is computer, management software, printer and so on.

Management System Function

Cost management: Cost statistics, queries, backups, statements, bills generation.

Community management: Setting up the parameters of the community.

User management: manage and control the amount of each household and settlement methods.

Transaction log: Reservation and query of system working condition.

Hierarchical management: Different management operators and their authority can be set.

Real-time meter reading: Real-time reading of the current data and status of any meter.

Auto-calibration: The time of the device in the system is automatically corrected when the meter is read regularly.

Data retention: The system can query historical data.

Information inquiry: User information can be inquired by number, address, name, telephone and other information.

Collection function: The meter reading system can be docked with the bank and collect by the paying bank.

Short message function: can realize the mobile phone short message to the household release amount, payment information.

Step pricing function: According to user requirements, set the corresponding step pricing mode.
